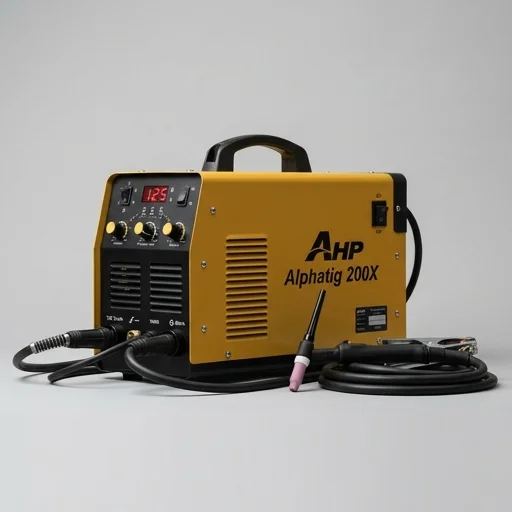

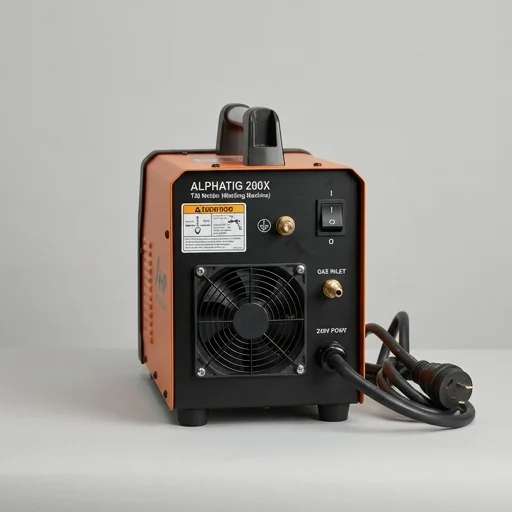

AHP Alphatig 200X TIG Welder
The AHP Alphatig 200X remains a favorite among hobbyists and small shop welders for its ability to deliver true AC/DC TIG performance—especially aluminum welding—at a price point far below many name-brand competitors.
- Rated output
- 5–200 A
- Duty cycle
- 60% at 200A
- Steel window
- 0.5–5.1 mm
- Mass
- 55 lbs
- True AC/DC TIG welding
- Includes foot pedal
- Great aluminum performance
Affiliate link — WeldFoundry takes a small commission on qualifying purchases at no extra cost to you. It has no bearing on the grade above, which is set against the other 33 entries in TIG Welders.
Running it
The AHP AlphaTIG 200X is a dedicated TIG welder built for hobbyists, fabricators, and small shop owners who want dependable arc performance without paying for industrial-grade price tags. It delivers both AC and DC TIG welding, making it capable of handling aluminum, stainless steel, mild steel, and other common metals with a clean, controllable arc. The unit is powered by inverter technology, which keeps the machine compact and portable while still providing stable output across a wide amperage range, typically up to 200 amps, suitable for a variety of material thicknesses. This versatility makes the AlphaTIG 200X a popular choice among those who need one machine that can transition between different welding tasks without sacrificing quality. Beyond its dual AC/DC capability, the AlphaTIG 200X includes pulse welding functionality, which helps reduce heat input and warping on thinner materials while giving welders more control over puddle formation. The adjustable AC frequency and balance controls allow users to fine-tune the cleaning action and penetration when working with aluminum, a feature that is often reserved for higher-end machines. It also supports stick welding, giving it added flexibility for those who occasionally need to run electrodes for repair work or heavier fabrication jobs. The digital display and intuitive control panel make it straightforward to dial in settings, even for welders who are still building experience with TIG processes. Constructed with a rugged case and equipped with a high-frequency start, the AHP AlphaTIG 200X is designed to strike a stable arc without contaminating the tungsten, which helps maintain weld quality over long sessions. It typically includes a foot pedal for amperage control, along with a TIG torch and accessories needed to get started right out of the box. Cooling is managed through an internal fan system, allowing the machine to handle extended duty cycles common in home garages and small fabrication shops. Overall, the AlphaTIG 200X stands out as a machine that blends affordability with a feature set that supports serious TIG welding work across multiple metal types and project scales.
The AHP Alphatig 200X remains a favorite among hobbyists and small shop welders for its ability to deliver true AC/DC TIG performance—especially aluminum welding—at a price point far below many name-brand competitors. While it lacks some modern conveniences like touchscreen controls or smart connectivity, its core welding performance, included foot pedal, and adjustable pulse function make it a dependable workhorse for those who prioritize function over flash.
The full plate
As stated by the manufacturer, 5 lines.
| Output Range | 5-200A |
|---|---|
| Input Voltage | 220V single phase |
| Duty Cycle | 60% at 200A |
| Weight | 55 lbs |
| Pulse Frequency | 0.5-250Hz |
What holds up
- Excellent value for AC/DC capable TIG welder
- Strong aluminum welding performance with AC balance control
- Foot pedal included for real-time amperage control
- Solid duty cycle for a budget-friendly unit
- Digital readout makes settings easy to dial in
What costs you
- Interface and menus feel dated compared to newer machines
- No wireless/app connectivity
- Cooling fan can be loud during extended use
- Documentation/manual could be clearer for beginners
- Heavier than some portable inverter units
Stated features
- 200A AC/DC TIG welding output
- Pulse function with adjustable frequency
- Pedal and torch amperage control included
- Built-in high frequency start (HF start)
- Digital display for precise amp/voltage control
- 220V single phase input
- Balance control for AC cleaning action
5 people who bought it
I've used this for aluminum fabrication for over a year now. The balance control lets me really clean up the puddle, and the pedal control is smooth. For the price, nothing else comes close.
Welds beautifully on both steel and aluminum. My only gripe is the control panel looks like it's from a decade ago, but functionally it does everything I need.
Bought this for home projects and it's held up well. The HF start is reliable and the pulse settings are versatile. Fan noise is noticeable but not a dealbreaker.
The welder itself performs solidly, especially for the price, but the manual is thin and I had to look up tutorials online to understand some of the pulse settings.
I run this daily doing repair work on aluminum trailers. Duty cycle is better than expected and the AC frequency adjustment gives me great control over the arc.
Three entries that sit next to it
Nearest standings in the ledger. Tick one to add it to the cross-reference sheet on the front page.
| 28 | Miller Electric Diversion 165 Miller Electric · TIG Welders | 20–165 A · 30% duty | 4.3 / 5 | C | ||

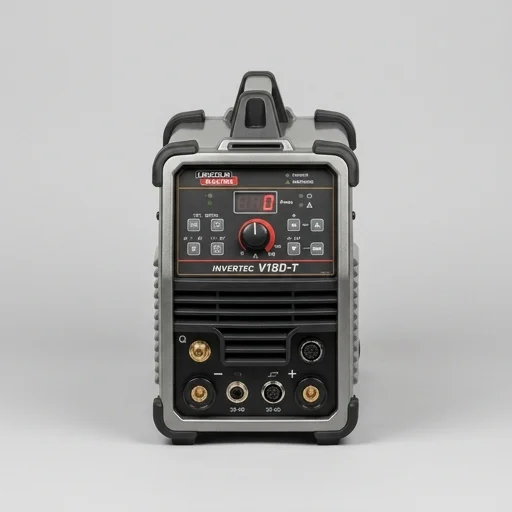

| 30 | Lincoln Electric Invertec V160-T TIG Welder Lincoln Electric · TIG Welders | 160 A · 30% duty | 4.3 / 5 | C | ||
