Miller Electric Syncrowave 210 TIG Welder
The Miller Syncrowave 210 remains a benchmark AC/DC TIG welder for shops that value rugged simplicity and outstanding aluminum welding performance.
- Rated output
- 5–210 A
- Duty cycle
- 150A at 100% duty cycle, 210A at 30%
- Steel window
- 0.5–5.3 mm
- Mass
- 204 lbs (92.5 kg)
- Superior aluminum TIG welds
- Dual voltage flexibility
- Rugged transformer reliability
Affiliate link — WeldFoundry takes a small commission on qualifying purchases at no extra cost to you. It has no bearing on the grade above, which is set against the other 33 entries in TIG Welders.
Running it
The Miller Electric Syncrowave 210 stands as a trusted choice among fabricators, artists, and maintenance welders who need dependable AC/DC TIG performance in a compact package. This transformer-based welder delivers up to 210 amps of output, making it well-suited for welding aluminum, stainless steel, mild steel, and other metals commonly encountered in fabrication shops and repair facilities. Its Advanced Squarewave technology allows for precise control over AC balance and frequency, giving welders the ability to fine-tune arc characteristics for cleaner puddles, reduced cleaning action adjustments, and better penetration on aluminum work specifically. The unit runs on standard single-phase input power, making it accessible for smaller shops that may not have three-phase service available. Built with the durability Miller is known for, the Syncrowave 210 features a rugged design intended to withstand the demands of daily industrial use while remaining portable enough to move between job sites or work areas within a shop. The welder includes a high-frequency start for non-contact arc initiation, which helps preserve tungsten electrode life and produces cleaner starts without contaminating the weld. Pulsing capability is also built into the machine, allowing operators to manage heat input on thinner materials and reduce warping, a valuable feature for those working with sheet metal or intricate aluminum projects. The foot pedal and hand control compatibility give welders flexible amperage control options depending on the application, whether they're working at a bench or in a more mobile welding scenario. For those investing in a machine meant to handle a wide range of TIG welding tasks, the Syncrowave 210 offers the kind of versatility and reliability that has made Miller Electric a respected name in the welding equipment industry. Its combination of AC and DC output means it isn't limited to just aluminum work; steel and stainless projects are equally within its capabilities, making it a practical single solution for shops handling diverse material types. The digital meters provide clear, accurate readouts of voltage and amperage, helping welders dial in settings with confidence rather than guesswork. Overall, the Syncrowave 210 is positioned as a workhorse TIG welder for professionals who need consistent arc quality, adjustable control, and the kind of build quality that supports years of demanding use in real-world welding environments.
The Miller Syncrowave 210 remains a benchmark AC/DC TIG welder for shops that value rugged simplicity and outstanding aluminum welding performance. While it lacks the portability and pulse features of newer inverter machines, its dependable transformer design, adjustable AC balance, and dual-voltage flexibility make it a trusted workhorse for hobbyists, fabricators, and small production shops alike.
The full plate
As stated by the manufacturer, 5 lines.
| Output Range | 5-210 Amps |
|---|---|
| Input Voltage | 120V/240V, single phase |
| Max Output at Duty Cycle | 150A at 100% duty cycle, 210A at 30% |
| Weight | 204 lbs (92.5 kg) |
| Process Types | AC/DC TIG and Stick (SMAW) |
What holds up
- Excellent aluminum TIG performance with adjustable AC balance
- Reliable transformer-based design with minimal electronics to fail
- Dual voltage input makes it usable in home garages or shops
- Quiet Fan-On-Demand reduces dust pulled into unit
- Simple analog controls are easy to learn for beginners
- Solid US-built construction with strong resale value
What costs you
- Heavy and less portable than inverter-based TIG machines
- Higher upfront cost compared to entry-level inverter TIG welders
- No pulse welding function included on base unit
- Requires separate remote foot pedal or hand control for amperage adjustment
- Transformer design draws more power than modern inverter units
Stated features
- AC/DC Square Wave TIG welding for aluminum and steel
- Dual voltage input (120V/240V) for shop flexibility
- Fan-On-Demand cooling reduces noise and dust intake
- Adjustable AC balance and frequency controls for arc shaping
- Built-in high-frequency arc start for clean, non-contact ignition
- Stick (SMAW) welding capability with Lift-Arc or HF start
- Pre-flow/post-flow gas timers for shielding gas control
5 people who bought it
Switched from an old buzzbox to this Syncrowave and my aluminum welds went from ugly to beautiful. The AC balance control makes a huge difference on oxide removal.
This thing is built like a tank. Only downside is moving it around my shop—definitely not a portable unit, but the weld quality makes up for it.
Been running this for stainless and aluminum jobs for over a year. Very consistent arc, and the high-frequency start never misses. Highly recommend for serious hobbyists.
Learning curve with the analog dials took a bit, but once dialed in, the welds are clean and strong. Wish it had pulse capability built in.
No fancy digital screens, just solid transformer technology that works every time. Perfect for farm and fabrication work where dust and abuse are common.
Three entries that sit next to it
Nearest standings in the ledger. Tick one to add it to the cross-reference sheet on the front page.
| 7 | PrimeWeld TIG225X PrimeWeld · TIG Welders | 10–225 A · 60% duty | 4.5 / 5 | A | ||

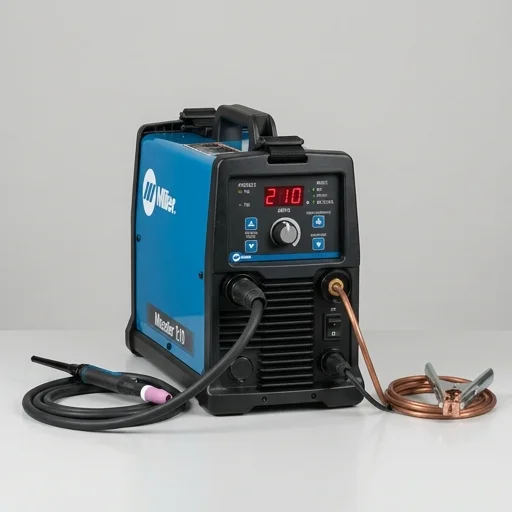

| 8 | Miller Electric Maxstar 210 Miller Electric · TIG Welders | 5–210 A · 40% duty | 4.6 / 5 | A | ||
