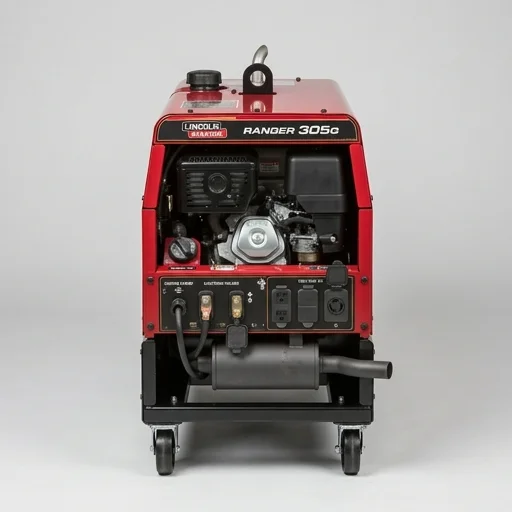

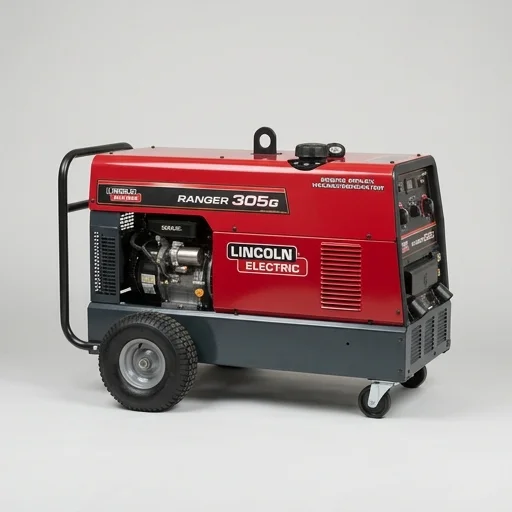

Lincoln Electric Ranger 305G
The Lincoln Electric Ranger 305G remains a benchmark engine-driven welder for pipeline, construction, and maintenance crews who need dependable multi-process welding paired with strong generator power in one rugged package.
- Rated output
- 305 A
- Steel window
- 0.9–7.7 mm
- Mass
- 740 lbs (335 kg)
- Engine
- Kohler CH730, 993cc gasoline
- Multi-process engine-driven welding
- 10,500W onboard generator
- Job site rugged reliability
Affiliate link — WeldFoundry takes a small commission on qualifying purchases at no extra cost to you. It has no bearing on the grade above, which is set against the other 14 entries in Engine-Driven Welders.
Running it
The Lincoln Electric Ranger 305G stands as a rugged, multi-process engine driven welder built for professionals who need dependable power in the field, whether on pipeline jobs, agricultural repairs, construction sites, or remote maintenance work. Powered by a Kohler gasoline engine, this machine delivers up to 305 amps of stick welding output along with reliable DC output for wire welding processes, making it a versatile choice for contractors who move between stick, MIG, flux-cored, and even TIG work with the addition of a high-frequency arc starter. Its Chopper Technology provides a stable, forgiving arc that helps operators strike and maintain welds even in less-than-ideal conditions, while the machine's compact frame and skid design make it easy to mount on trucks, trailers, or work carts for quick transport between job locations. Beyond its welding capability, the Ranger 305G doubles as an auxiliary power source, offering up to 10,000 watts of peak generator power and continuous output suitable for running grinders, lights, pumps, and other job site equipment. This dual-purpose functionality reduces the need for separate generators, saving crews money and trailer space while ensuring power is available for both welding tasks and general site needs. The unit features simple, accessible controls on its control panel, allowing operators to switch between welding processes and generator functions without complicated setup, and the engine's fuel efficiency helps extend run time between refueling stops, an important factor for crews working long shifts in isolated areas. Built with the durability Lincoln Electric is known for, the Ranger 305G includes a heavy-gauge steel enclosure that protects internal components from dust, moisture, and impact damage common in outdoor and industrial environments. Maintenance access points are designed for straightforward serviceability, helping reduce downtime when parts need inspection or replacement. The machine's reputation among welders and fabrication crews stems from its consistent arc performance, dependable engine longevity, and ability to handle diverse welding applications without sacrificing portability. For any operation requiring a self-sufficient, engine driven welding solution that can perform reliably away from utility power, the Ranger 305G remains a trusted workhorse in the welding equipment industry.
The Lincoln Electric Ranger 305G remains a benchmark engine-driven welder for pipeline, construction, and maintenance crews who need dependable multi-process welding paired with strong generator power in one rugged package. Its Kohler engine and chopper technology deliver a smooth, forgiving arc across Stick, TIG, and wire processes, while the onboard 10,500-watt generator easily runs grinders, lights, and power tools on remote job sites. It's not light or cheap, and upkeep on the gas engine is a factor, but for professionals who need field-ready reliability day after day, the 305G continues to earn its reputation as an industry workhorse.
The full plate
As stated by the manufacturer, 5 lines.
| Engine | Kohler CH730, 993cc gasoline |
|---|---|
| Rated Output | 305A CC/CV welding output |
| Generator Power | 10,500W peak / 9,500W continuous |
| Weight | 740 lbs (335 kg) |
| Fuel Tank Capacity | 9.3 gallons (35.2 L) |
What holds up
- Reliable Kohler engine with long service life
- Smooth arc across Stick, TIG and wire processes
- Ample auxiliary power for grinders, lights, and tools
- Rugged steel frame built for job site abuse
- Wide voltage/amperage range covers thin sheet to heavy plate
- Auto-idle feature saves fuel and reduces noise
What costs you
- Heavy at over 700 lbs, needs lift or trailer
- Higher fuel consumption under continuous heavy load
- Routine engine maintenance adds ownership cost
- Louder than inverter-based engine drives at full output
- Purchase price is steep for hobbyist or occasional use
Stated features
- Kohler 993cc gasoline engine
- CC/CV multi-process welding output (Stick, TIG, MIG, Flux-Cored)
- 10,500 watt peak AC generator power
- Chopper technology for stable arc performance
- Idle-a-Lite auto idle down system
- 12-volt battery charging output
- Standard equipment for pipeline and construction crews
4 people who bought it
Been running this Ranger for three years on pipeline jobs. Starts every time, arc is smooth on stick and TIG, and the generator side keeps our grinders and lights going all day without hiccups.
Welding performance is excellent across all processes we use. Only downside is moving it around the shop without a trailer or forklift is a real chore given how heavy it is.
No power lines out where I work, so this unit is a lifesaver. Runs my plasma cutter and shop lights off the generator side while still welding fence repairs with the stick function.
Welds beautifully and the auto-idle helps, but under heavy continuous use it drinks gas faster than I expected. Still, the reliability and arc quality make up for it.
