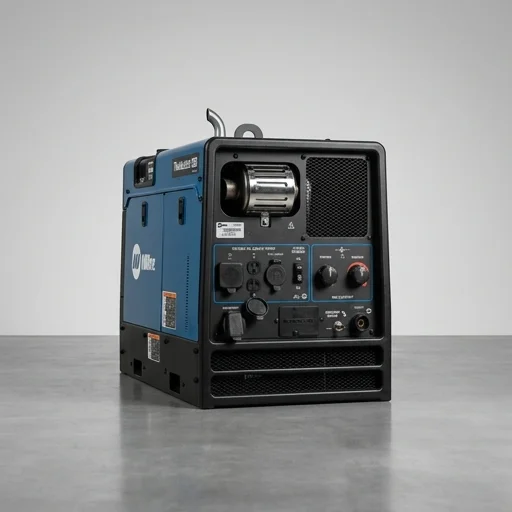

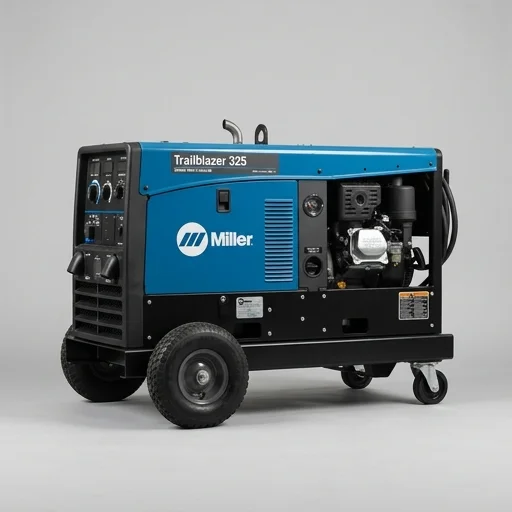

Miller Electric Trailblazer 325
The Miller Trailblazer 325 is a proven engine-driven welder/generator combo built for contractors, pipeline crews, and mobile fabricators who need dependable multiprocess welding output alongside strong auxiliary power.
- Rated output
- 325 A
- Steel window
- 1.0–8.3 mm
- Mass
- 736 lbs (334 kg)
- Engine
- Kohler gasoline, 23 hp
- Multiprocess welding power
- Built-in 11kW generator
- Job-site durability
Affiliate link — WeldFoundry takes a small commission on qualifying purchases at no extra cost to you. It has no bearing on the grade above, which is set against the other 14 entries in Engine-Driven Welders.
Running it
The Miller Trailblazer 325 is a rugged engine-driven welder built for professionals who need dependable power on remote jobsites, agricultural operations, and pipeline work where utility power simply isn't available. Powered by a Kohler gasoline engine, this machine delivers up to 325 amps of stick and DC TIG welding output alongside generator power for running grinders, lights, and other job-site tools. Its Extreme Cold Weather Package option and rugged, weatherproof housing reflect Miller's understanding that engine-driven welders often live in trucks and trailers, exposed to dust, moisture, and temperature swings that would sideline lesser equipment. At the heart of the Trailblazer 325 is Miller's proprietary Excel Power generator technology, which produces smooth, clean auxiliary power suitable for sensitive electronics as well as heavy-duty tools. The welder offers multiple weld modes, including a stick mode tuned for smooth arc starts and reduced spatter, and a DC TIG mode that benefits from Lag Start technology for a soft, controlled arc initiation without the need for a high-frequency start. Fabricators and maintenance crews appreciate the machine's fan-on-demand cooling system, which reduces noise and pulls in less airborne debris by running the cooling fan only when needed, extending the life of internal components in dusty or sandy environments. Built on a heavy-gauge steel frame with a lift bail and optional wheeled undercarriage, the Trailblazer 325 is designed for the abuse of daily transport between job sites without sacrificing reliability. Fuel efficiency is a strong selling point, as the engine is matched to the welding and generator loads to minimize fuel consumption during idle periods and extended runtime on remote sites. Whether it's mounted on a service truck for pipeline repair, hauled to a ranch for fence and equipment welding, or kept on standby for construction and disaster-response crews needing both arc welding capability and generator power, the Miller Trailblazer 325 stands out as a versatile, field-proven engine-driven welder trusted across heavy industries.
The Miller Trailblazer 325 is a proven engine-driven welder/generator combo built for contractors, pipeline crews, and mobile fabricators who need dependable multiprocess welding output alongside strong auxiliary power. Its Kohler engine and Fan-On-Demand technology deliver efficiency and longevity, making it a solid long-term investment despite the higher initial price and weight.
The full plate
As stated by the manufacturer, 5 lines.
| Engine | Kohler gasoline, 23 hp |
|---|---|
| Max Welding Output | 325A |
| Auxiliary Power | 11,000W peak / 10,500W running |
| Weight | 736 lbs (334 kg) |
| Welding Processes | Stick, TIG, MIG, Flux-Cored |
What holds up
- Reliable auxiliary power for tools and lighting on remote job sites
- Smooth arc performance across Stick, TIG, and MIG processes
- Fan-On-Demand reduces fuel consumption and engine wear
- Durable construction suited for pipeline and construction environments
- Wide welding amperage range covers thin sheet metal to heavy fabrication
What costs you
- Heavy unit, requires trailer or lift for transport
- Higher upfront cost compared to basic engine drives
- Routine maintenance needed for gasoline engine (spark plug, oil, air filter)
- Noise level noticeable under full engine load without enclosure
Stated features
- Kohler gasoline engine, 23 hp
- 325A max welding output (CC/CV)
- Built-in Excel Power single-phase generator, 11,000 watts peak/10,500 running
- Multiprocess capability: Stick, TIG, MIG, Flux-Cored
- Fan-On-Demand cooling system for reduced noise and fuel use
- Wireless remote control compatibility (Insight Core, TIG remote)
- Rugged all-terrain undercarriage options available
4 people who bought it
Been running this Trailblazer for two years on pipeline work. Starts every time, smooth arc on TIG, and the generator power runs my grinder and lights without a hiccup.
Welds beautifully across all processes I use. Only complaint is the weight—needed a proper trailer setup since it's not something you toss in a truck bed easily.
Noticed a real difference in fuel usage compared to my old engine drive. The fan only kicks on when needed, and it's quieter during idle periods.
Switching between stick and MIG on site is seamless. Auxiliary power output has run my whole trailer setup without issue. Maintenance is straightforward if you stay on schedule.
